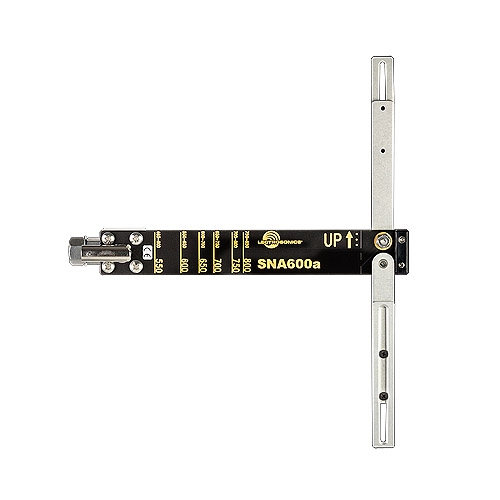

The SNA600 antenna is a versatile tool for use with wireless microphone receivers or IFB transmitters. The center frequency of its 100 MHz bandwidth is tunable from 550 to 800 MHz. The frequency is set by adjusting the dipole elements using the scale printed on the body of the antenna. The elements fold for storage.
SPECIFICATIONS
Impedance 50 ohms
Connector Type BNC
SWR Less than 2:1 at +/- 50 MHz
3dB Bandwidth: 150 MHz Usable Frequency Range: 465 to 850 MHz
Gain 2.17dBi (isotropic) or 0 dBd (referenced to a dipole)
Antenna power blocking Capacitive coupling for use with DC power on cable
Length 7"
Width 1” folded , 7” to 11” extended depending on frequency
Adjustable Dipole Antenna
Adjustable Dipole Antenna
The SNA600 antenna is a versatile tool for use with wireless microphone receivers or IFB transmitters. The center frequency of its 100 MHz bandwidth is tunable from 550 to 800 MHz. The frequency is set by adjusting the dipole elements using the scale printed on the body of the antenna. The elements fold for storage.
SPECIFICATIONS
Impedance 50 ohms
Connector Type BNC
SWR Less than 2:1 at +/- 50 MHz
3dB Bandwidth: 150 MHz Usable Frequency Range: 465 to 850 MHz
Gain 2.17dBi (isotropic) or 0 dBd (referenced to a dipole)
Antenna power blocking Capacitive coupling for use with DC power on cable
Length 7"
Width 1” folded , 7” to 11” extended depending on frequency
Thickness 1"
Weight\ 3.5 oz
