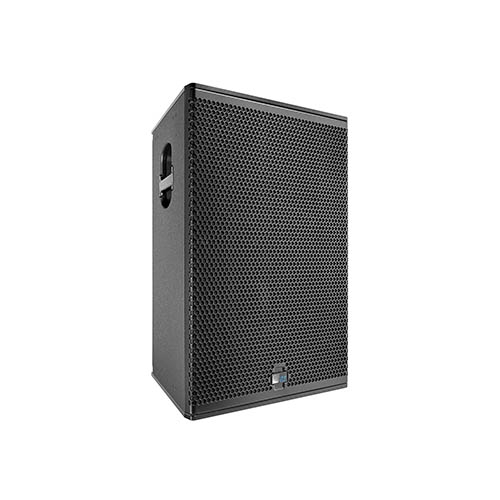

UPQ 스피커는 이동형, 인스톨 시스템의 핵심 제품입니다. 크기 대비 높은 파워를 가지며 부드러운 응답 특성과 일관된 커버리지를 가집니다.
3가지 커버리지 패턴을 제공합니다. 80‘ * 50’를 제공하는 UPQ-D1, 50‘ * 50’를 제공하는 UPQ-D2, 80’ * 80’를 제공하는 UPQ-D3 가 있습니다. UPQ 스피커는 중소형 시스템의 메인 스피커로, 대규모 시스템의 서브 시스템으로 적용할 수 있습니다.
LEO 제품군에서 사용된 효율이 좋은 2채널 D-CLASS 앰프를 적용했습니다. 리미터, 보정 필터, 드라이버 보호 회로가 포함 된 정교한 DSP 덕분에 왜곡은 적으며 높은 출력을 제공합니다.
SPECIFICATIONS
ACOUSTICAL
Operating Frequency Range : 55 Hz – 18 kHz
Frequency Response : 58 Hz – 18 kHz ±4 dB
Phase Response : 80 Hz – 18 kHz ±45°
Linear Peak SPL : 135.5 dB with crest factor >17 dB (M-noise), 132 dB (Pink noise), 135 dB (B‑noise)
COVERAGE
80° horizontal x 50° vertical (‑6 dB)
100° horizontal x 60° vertical (‑10 dB)
TRANSDUCERS
Low Frequency : One high‑power 15‑inch cone driver with neodymium magnet; 2 Ω nominal impedance
High Frequency : One 4‑inch diaphragm compression driver; 8 Ω nominal impedance
AUDIO INPUT
Type : Differential, electronically balanced
Maximum Common Mode Range : ±15 V DC, clamped to earth for voltage transient protection
Connectors : XLR 3‑pin female input with male loop output; optional 5‑pin connectors to accommodate both balanced audio and RMS signals
Input Impedance : 10 kΩ differential between pins 2 and 3
Wiring :
Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
Pin 2: Signal +
Pin 3: Signal ‑
Case: Earth ground and chassis
Nominal Input Sensitivity : 0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
Input Level : Audio source must be capable of producing of +20 dBV (10 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
AMPLIFIER
Type : Two‑channel, Class‑D
Total Output Power : 2250 W peak
THD, IM, TIM : < 0.02%
Cooling : Convection
AC POWER
Connector : PowerCON 20 input with loop output
Automatic Voltage Selection : 90–265 V AC, 50–60 Hz
Safety Agency Rated Voltage Range : 100–240 V AC, 50–60 Hz
Turn‑on and Turn‑off Points : 90 V AC turn‑on; no turn‑off; internal fuse‑protection above 265 V AC
RMS NETWORK (OPTIONAL) :
Equipped with two‑conductor twisted‑pair network, reporting all operating parameters of amplifiers to system operator’s host computer.
PHYSICAL
Dimensions : W: 19.00 in (483 mm) x H: 28.15 in (715 mm) x D: 18.18 in (462 mm)
Weight : 95 lb (43 kg)
Enclosure : Premium multi‑ply birch with slightly textured black finish
Protective Grille : Powder‑coated, hex‑stamped steel with black mesh
Rigging : Aluminum end plates on top and bottom with metric M10 threaded points; integral 1.5‑inch (38 mm) pole mount receptacle on bottom
Full-Size Loudspeakers
Full-Size Loudspeakers
UPQ 스피커는 이동형, 인스톨 시스템의 핵심 제품입니다. 크기 대비 높은 파워를 가지며 부드러운 응답 특성과 일관된 커버리지를 가집니다.
3가지 커버리지 패턴을 제공합니다. 80‘ * 50’를 제공하는 UPQ-D1, 50‘ * 50’를 제공하는 UPQ-D2, 80’ * 80’를 제공하는 UPQ-D3 가 있습니다. UPQ 스피커는 중소형 시스템의 메인 스피커로, 대규모 시스템의 서브 시스템으로 적용할 수 있습니다.
LEO 제품군에서 사용된 효율이 좋은 2채널 D-CLASS 앰프를 적용했습니다. 리미터, 보정 필터, 드라이버 보호 회로가 포함 된 정교한 DSP 덕분에 왜곡은 적으며 높은 출력을 제공합니다.
SPECIFICATIONS
ACOUSTICAL
Operating Frequency Range : 55 Hz – 18 kHz
Frequency Response : 58 Hz – 18 kHz ±4 dB
Phase Response : 80 Hz – 18 kHz ±45°
Linear Peak SPL : 135.5 dB with crest factor >17 dB (M-noise), 132 dB (Pink noise), 135 dB (B‑noise)
COVERAGE
80° horizontal x 50° vertical (‑6 dB)
100° horizontal x 60° vertical (‑10 dB)
TRANSDUCERS
Low Frequency : One high‑power 15‑inch cone driver with neodymium magnet; 2 Ω nominal impedance
High Frequency : One 4‑inch diaphragm compression driver; 8 Ω nominal impedance
AUDIO INPUT
Type : Differential, electronically balanced
Maximum Common Mode Range : ±15 V DC, clamped to earth for voltage transient protection
Connectors : XLR 3‑pin female input with male loop output; optional 5‑pin connectors to accommodate both balanced audio and RMS signals
Input Impedance : 10 kΩ differential between pins 2 and 3
Wiring :
Pin 1: Chassis/earth through 220 kΩ, 1000 pF, 15 V clamp network to provide virtual ground lift at audio frequencies
Pin 2: Signal +
Pin 3: Signal ‑
Case: Earth ground and chassis
Nominal Input Sensitivity : 0 dBV (1.0 V rms) continuous is typically the onset of limiting for noise and music
Input Level : Audio source must be capable of producing of +20 dBV (10 V rms) into 600 Ω to produce the maximum peak SPL over the operating bandwidth of the loudspeaker.
AMPLIFIER
Type : Two‑channel, Class‑D
Total Output Power : 2250 W peak
THD, IM, TIM : < 0.02%
Cooling : Convection
AC POWER
Connector : PowerCON 20 input with loop output
Automatic Voltage Selection : 90–265 V AC, 50–60 Hz
Safety Agency Rated Voltage Range : 100–240 V AC, 50–60 Hz
Turn‑on and Turn‑off Points : 90 V AC turn‑on; no turn‑off; internal fuse‑protection above 265 V AC
RMS NETWORK (OPTIONAL) :
Equipped with two‑conductor twisted‑pair network, reporting all operating parameters of amplifiers to system operator’s host computer.
PHYSICAL
Dimensions : W: 19.00 in (483 mm) x H: 28.15 in (715 mm) x D: 18.18 in (462 mm)
Weight : 95 lb (43 kg)
Enclosure : Premium multi‑ply birch with slightly textured black finish
Protective Grille : Powder‑coated, hex‑stamped steel with black mesh
Rigging : Aluminum end plates on top and bottom with metric M10 threaded points; integral 1.5‑inch (38 mm) pole mount receptacle on bottom
