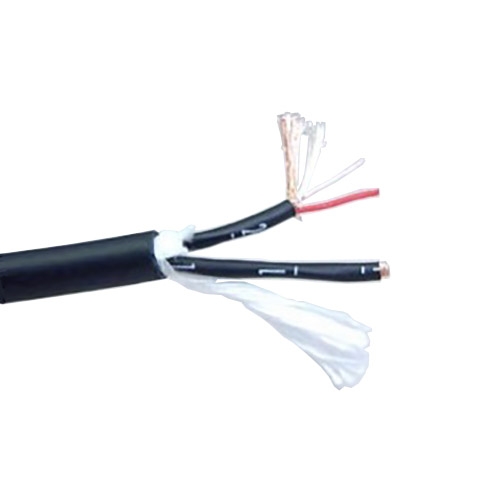

2ch Multicore Microphone Cables
W2930
2ch Multicore Microphone Cables
STANDARD VERSION
No. Of Channels : 2ch
Ov. Dia. (Approx. mm) : 7.5 (0.295")
Jacket Thickness (Approx. mm) : 1.0 (0.039")
Weight (kg/100m)(kg/328Ft) : 7
Maximum Length available : 506m (1.659Ft)
CABLE CORE SPECS
Conductor : 30/0.08A (0.15mm2) #26AWG (30×#40AWG)
Insulation : 1.0φ XLPE (Cross Linked Polyethylene) (0.039"φ)
Drain Wire : 7/0.18TA (0.18mm2) #25AWG (7×#33AWG)
Shield : Approx. 60/0.10A Served (spiral ) Shield
Jacket(Covering) : 2.8φ Flexible PVC (0.110"φ)
Identification : See core number identification table
