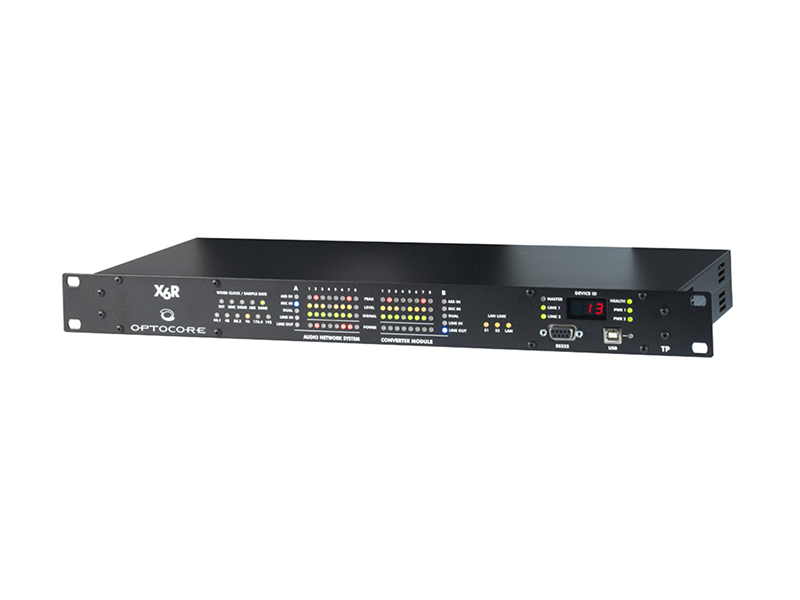

NETWORK CONVERTER UNIT with Ethernet
X6R-FX-8AE/8ANALOG
NETWORK CONVERTER UNIT with Ethernet
12 in 1, the X6R is a converter unit with the highest degree of flexibility concerning the I/O configuration. Six different card types enable to customise the card slots on the rear of the device, the conversion of analogue signals – 16 inputs, 16 outputs, 8 inputs and 8 outputs or dual microphone inputs with two independent adjustable preamps – to AES/EBU is provided as well as the sample rate conversion for AES/EBU. Twelve different versions are available. The AES/EBU card could be set from 16 channels to 8 channels in combination with mic IN, line IN or line OUT card and IN/OUT configuration can be changed in groups of 8 channels Audio and Data is exchangeable from OPTOCORE to SANE and vice versa. The X6R is especially designed for rack mounted applications and permanent installation. All cards are equipped with Euroblock connectors. With the other Optocore or SANE devices, the X6R-FX offers a great flexibility to build the network exactly suiting an application's need. These common installation interfaces provide a simple and cost-efficient connection to other audio equipment.
KEYFACTS:
4 x AES3 ports in combination with 8 analog channels – total of 16 audio channels
Analog options – 8 Mic IN, 8 Line IN, 8 Line OUT
Microphone Preamps controllable from different digital consoles
AES3 configurable as 8 inputs or 8 outputs
32-bit AES transparent transport and routing
2 x fiber SFP ports for redundant Optocore ring
2 x SANE ports for MADI Cat5, X6R/V3R/Y3R-TP or LAN connectivity
4 x RS485/422
2 x LAN
Word Clock I/O
Dual redundant PSU
